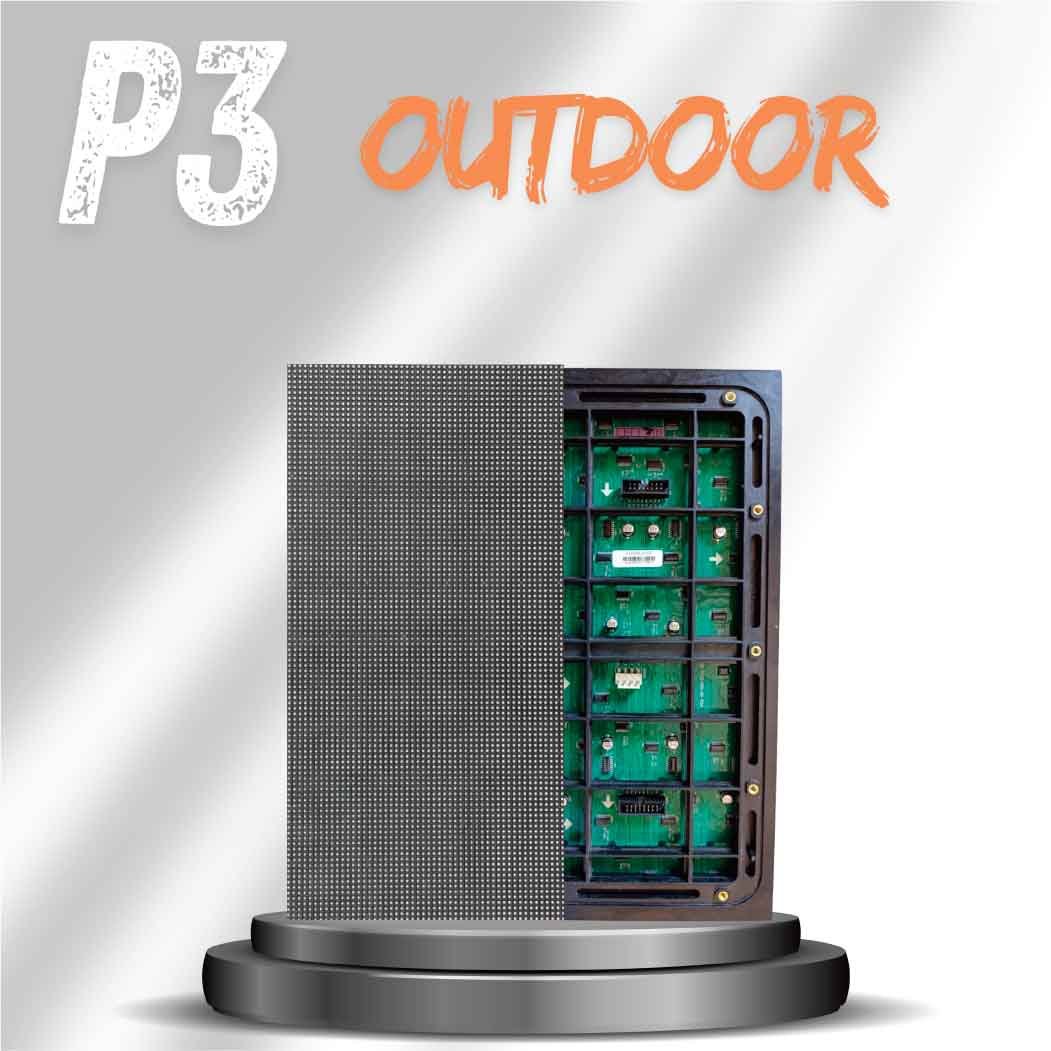

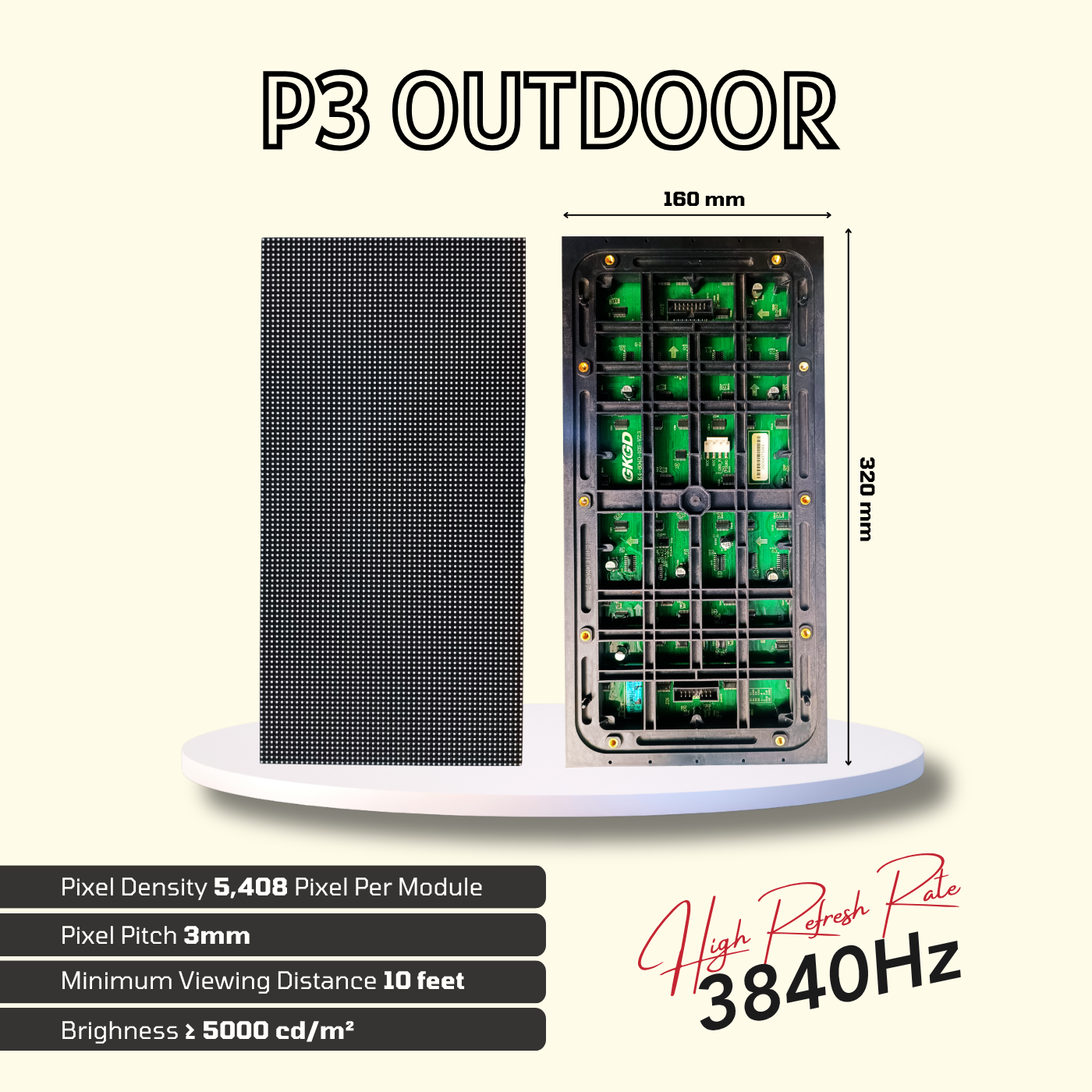

P3 Outdoor SMD Module
The Outdoor SMD P3 High Refresh Rate LED Display Module is engineered for top-tier outdoor LED display screens, providing outstanding visual performance and reliability.
| Pixel Pitch | 3mm |
| Pixel Configuration | 1R1G1B |
| LED Type | SMD1415 |
| Module Size | 320*160mm(w*h) |
| Module Resolution | 104*52mm(w*h) |
| Module Weight | 450g |
| Pixel Density | 105,625dots/m² |
| Brightness | ≥5000cd/m² |
| Max. Power Consumption | 35w/piece |
| Avg. Power Consumption | 18w/piece |
| Refresh Rate | ≥3840Hz |
| Min. Viewing Distance | ≥3 meters |
