Indoor GOB Module

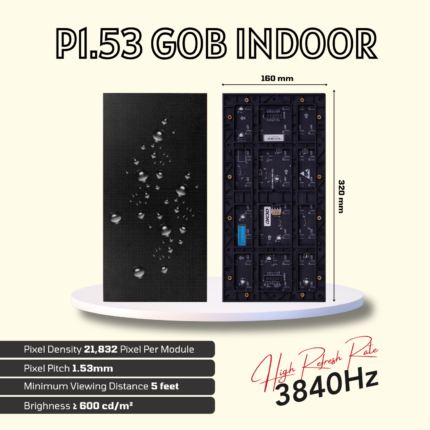

P1.53 GOB Indoor Module
Here’s a sample specification sheet for a P1.53 Indoor GOB (Glue-on-Board) LED Display. GOB is a protective epoxy resin coating that enhances the durability and reliability of LED modules, especially for fine-pitch displays like P1.53.
| Pixel Pitch | 1.53mm-GOB |
| Pixel Configuration | 1R1G1B |
| LED Type | SMD1415 |
| Module Size | 320*160mm(w*h) |
| Module Resolution | 208*104mm(w*h) |
| Module Weight | 498g |
| Pixel Density | 422,500dots/m² |
| Brightness | ≥600cd/m² |
| Max. Power Consumption | 31w/piece |
| Avg. Power Consumption | 16w/piece |
| Refresh Rate | ≥3840Hz |
| Min. Viewing Distance | ≥1.53 meters |

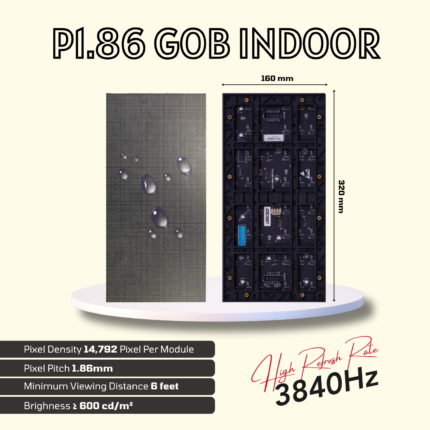

P1.86 GOB Indoor Module
The P1.86 Indoor Flexible GKGD GOB (Glue on Board) module combines ultra-fine 1.86mm pixel pitch with a bendable, seamless design for creative indoor installations. GOB technology enhances durability by providing a protective resin layer, making it dustproof, moisture-resistant, and impact-resistant.
| Pixel Pitch | 1.86 GOB mm |
| Pixel Configuration | 1R1G1B |
| LED Type | SMD1515 |
| Module Size | 320*160mm(w*h) |
| Module Resolution | 172*86mm(w*h) |
| Module Weight | 486g |
| Pixel Density | 288,906dots/m² |
| Brightness | ≥600cd/m² |
| Max. Power Consumption | 25w/piece |
| Avg. Power Consumption | 13w/piece |
| Refresh Rate | ≥3840Hz |
| Min. Viewing Distance | ≥1.86 meters |

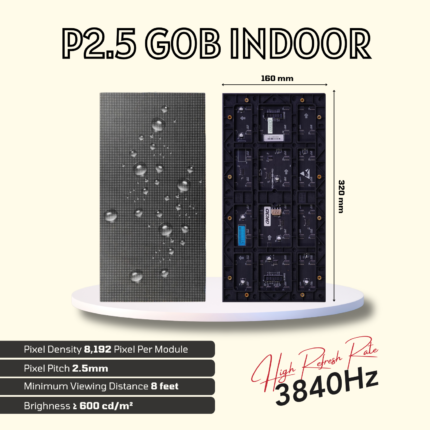

P2.5 Indoor GOB Module
A P2.5 indoor GOB (Glue on Board) LED module is an advanced display panel designed for high-resolution indoor applications. The GOB technology involves applying a transparent epoxy resin over the LED surface, enhancing durability by protecting against moisture, dust, and physical impact.
| Pixel Pitch | 2.5mm |
| Pixel Configuration | 1R1G1B |
| LED Type | SMD2020/SMD1515 |
| Module Size | 320*160mm(w*h) |
| Module Resolution | 128*64mm(w*h) |
| Module Weight | 431g |
| Pixel Density | 160,000dots/m² |
| Brightness | ≥600cd/m² |
| Max. Power Consumption | 22w/piece |
| Avg. Power Consumption | 11w/piece |
| Refresh Rate | ≥3840Hz |
| Min. Viewing Distance | ≥2.5 meters |
