Indoor SMD Module
P1.53 GOB Indoor Module
Here’s a sample specification sheet for a P1.53 Indoor GOB (Glue-on-Board) LED Display. GOB is a protective epoxy resin coating that enhances the durability and reliability of LED modules, especially for fine-pitch displays like P1.53.
| Pixel Pitch | 1.53mm-GOB |
| Pixel Configuration | 1R1G1B |
| LED Type | SMD1415 |
| Module Size | 320*160mm(w*h) |
| Module Resolution | 208*104mm(w*h) |
| Module Weight | 498g |
| Pixel Density | 422,500dots/m² |
| Brightness | ≥600cd/m² |
| Max. Power Consumption | 31w/piece |
| Avg. Power Consumption | 16w/piece |
| Refresh Rate | ≥3840Hz |
| Min. Viewing Distance | ≥1.53 meters |
P1.56 COB Indoor Module
The P1.56 Indoor COB SMD LED Display features a 1.56 mm pixel pitch, COB technology, and a 3840Hz refresh rate for ultra-clear, smooth visuals. Its front-service design, high contrast ratio, and energy-efficient performance make it ideal for control rooms, meeting rooms, broadcast studios, and other professional indoor applications.
| Pixel Pitch | 1.56mm |
| Pixel Configuration | 1R1G1B-COB |
| LED Type | SMD1415 |
| Module Size | 300*168.75mm(w*h) |
| Module Resolution | 192*108 mm(w*h) |
| Module Weight | 0.28kg |
| Pixel Density | 409,600 dots/m² |
| Brightness | ≥600cd/m² |
| Max. Power Consumption | 8w/piece |
| Avg. Power Consumption | 15w/piece |
| Refresh Rate | ≥3840Hz |
| Min. Viewing Distance | ≥1.56 meters |
P1.86 GOB Flexible Indoor Module
The P1.86 Indoor Flexible GKGD LED module features an ultra-fine 1.86mm pixel pitch, ideal for high-definition curved or creative displays. Its soft, bendable design allows seamless installation on concave, convex, or custom-shaped surfaces.
| Pixel Pitch | 1.86mm |
| Pixel Configuration | 1R1G1B |
| LED Type | SMD1515 |
| Module Size | 320*160mm(w*h) |
| Module Resolution | 172*86mm(w*h) |
| Module Weight | 486g |
| Pixel Density | 288,906dots/m² |
| Brightness | ≥600cd/m² |
| Max. Power Consumption | 25w/piece |
| Avg. Power Consumption | 13w/piece |
| Refresh Rate | ≥3840Hz |
| Min. Viewing Distance | ≥1.86 meters |
P1.86 GOB Indoor Module
The P1.86 Indoor Flexible GKGD GOB (Glue on Board) module combines ultra-fine 1.86mm pixel pitch with a bendable, seamless design for creative indoor installations. GOB technology enhances durability by providing a protective resin layer, making it dustproof, moisture-resistant, and impact-resistant.
| Pixel Pitch | 1.86 GOB mm |
| Pixel Configuration | 1R1G1B |
| LED Type | SMD1515 |
| Module Size | 320*160mm(w*h) |
| Module Resolution | 172*86mm(w*h) |
| Module Weight | 486g |
| Pixel Density | 288,906dots/m² |
| Brightness | ≥600cd/m² |
| Max. Power Consumption | 25w/piece |
| Avg. Power Consumption | 13w/piece |
| Refresh Rate | ≥3840Hz |
| Min. Viewing Distance | ≥1.86 meters |
P1.86 Indoor SMD Module
The P1.86 Indoor GKGD LED module offers ultra-high resolution with a 1.86mm pixel pitch, perfect for close-viewing environments like control rooms, studios, and retail displays. It delivers sharp visuals, stable performance, and easy maintenance for premium indoor applications.
| Pixel Pitch | 1.86mm |
| Pixel Configuration | 1R1G1B |
| LED Type | SMD1515 |
| Module Size | 320*160mm(w*h) |
| Module Resolution | 172*86mm(w*h) |
| Module Weight | 486g |
| Pixel Density | 288,906dots/m² |
| Brightness | ≥600cd/m² |
| Max. Power Consumption | 25w/piece |
| Avg. Power Consumption | 13w/piece |
| Refresh Rate | ≥3840Hz |
| Min. Viewing Distance | ≥1.86 meters |
P2.5 GOB Flexible Indoor Module
A P2.5 indoor flexible LED module is a high-resolution display solution designed for creative and curved installations in indoor environments. These modules offer sharp image quality suitable for close-viewing applications such as retail displays, exhibitions, and stage backdrops.
| Pixel Pitch | 2.5mm |
| Pixel Configuration | 1R1G1B |
| LED Type | SMD2020/SMD1515 |
| Module Size | 320*160mm(w*h) |
| Module Resolution | 128*64mm(w*h) |
| Module Weight | 431g |
| Pixel Density | 160,000dots/m² |
| Brightness | ≥600cd/m² |
| Max. Power Consumption | 22w/piece |
| Avg. Power Consumption | 11w/piece |
| Refresh Rate | ≥3840Hz |
| Min. Viewing Distance | ≥2.5 meters |
P2.5 Indoor GOB Module
A P2.5 indoor GOB (Glue on Board) LED module is an advanced display panel designed for high-resolution indoor applications. The GOB technology involves applying a transparent epoxy resin over the LED surface, enhancing durability by protecting against moisture, dust, and physical impact.
| Pixel Pitch | 2.5mm |
| Pixel Configuration | 1R1G1B |
| LED Type | SMD2020/SMD1515 |
| Module Size | 320*160mm(w*h) |
| Module Resolution | 128*64mm(w*h) |
| Module Weight | 431g |
| Pixel Density | 160,000dots/m² |
| Brightness | ≥600cd/m² |
| Max. Power Consumption | 22w/piece |
| Avg. Power Consumption | 11w/piece |
| Refresh Rate | ≥3840Hz |
| Min. Viewing Distance | ≥2.5 meters |

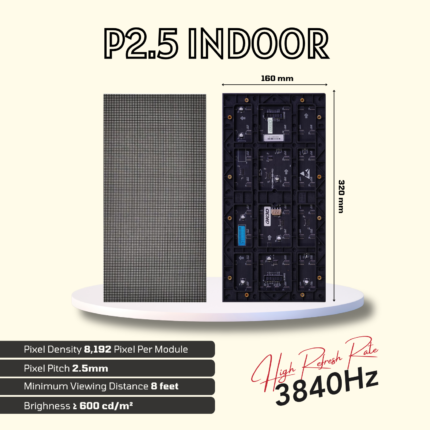

P2.5 Indoor SMD Module
A P2.5 Indoor SMD screen refers to an LED display panel with a pixel pitch of 2.5mm, designed for indoor use using Surface-Mounted Device (SMD) technology. Here are some key technical and functional details:
| Pixel Pitch | 2.5mm |
| Pixel Configuration | 1R1G1B |
| LED Type | SMD2020/SMD1515 |
| Module Size | 320*160mm(w*h) |
| Module Resolution | 128*64mm(w*h) |
| Module Weight | 431g |
| Pixel Density | 160,000dots/m² |
| Brightness | ≥600cd/m² |
| Max. Power Consumption | 22w/piece |
| Avg. Power Consumption | 11w/piece |
| Refresh Rate | ≥3840Hz |
| Min. Viewing Distance | ≥2.5 meters |

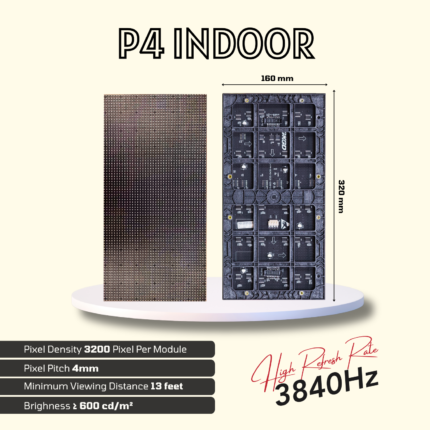

P4 Indoor SMD Module
A P4 Indoor SMD Screen (GKGD) is a high-resolution LED display designed for indoor use, featuring a 4 mm pixel pitch. Here’s a clear breakdown of its key details:
| Pixel Pitch | 4mm |
| Pixel Configuration | 1R1G1B |
| LED Type | SMD2020 |
| Module Size | 320*160mm(w*h) |
| Module Resolution | 80*40mm(w*h) |
| Module Weight | 360+5g |
| Pixel Density | 62,500dots/m² |
| Brightness | ≥600cd/m² |
| Max. Power Consumption | 26w/piece |
| Avg. Power Consumption | 13w/piece |
| Refresh Rate | ≥3840Hz |
| Min. Viewing Distance | ≥4 meters |

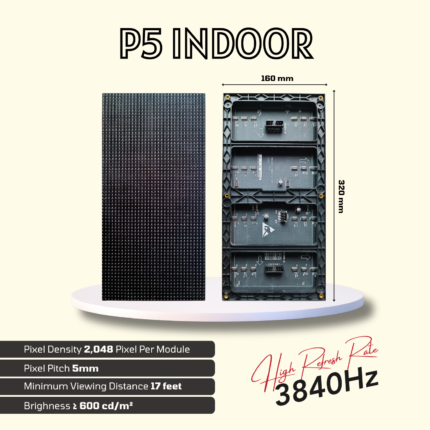

P5 Indoor SMD Module
The P5 indoor LED display features a 5mm pixel pitch, offering a balance of cost and clarity for medium-range viewing applications. It’s widely used in indoor advertising, events, and stage backdrops where vibrant visuals and durability are essential.
| Pixel Pitch | 5mm |
| Pixel Configuration | 1R1G1B |
| LED Type | SMD2020 |
| Module Size | 64*32mm(w*h) |
| Module Resolution | 128*64mm(w*h) |
| Module Weight | 290g |
| Pixel Density | 40,000dots/m² |
| Brightness | ≥600cd/m² |
| Max. Power Consumption | 16w/piece |
| Avg. Power Consumption | 8w/piece |
| Refresh Rate | ≥1920Hz |
| Min. Viewing Distance | ≥5 meters |
