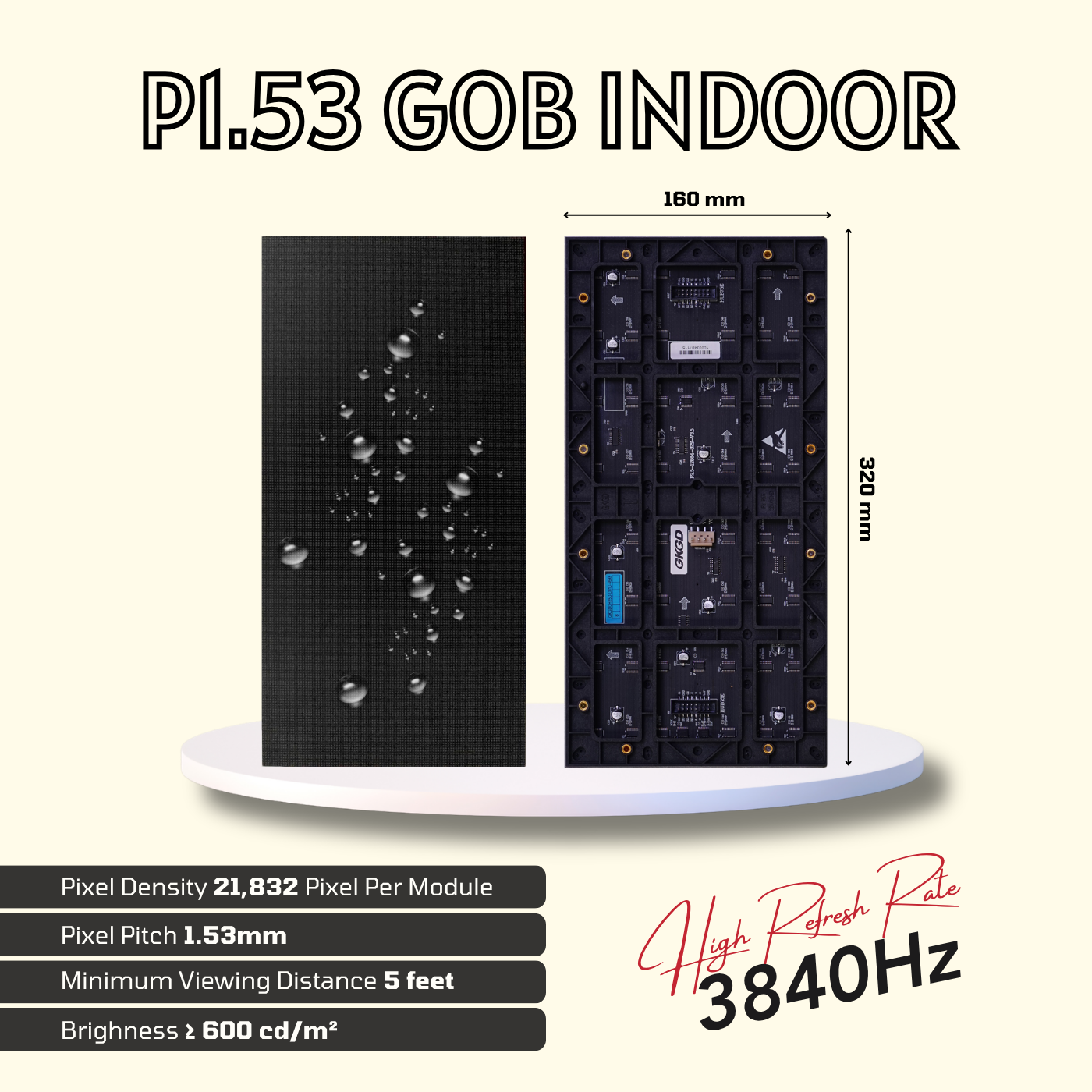

P1.53 GOB Indoor Module
Here’s a sample specification sheet for a P1.53 Indoor GOB (Glue-on-Board) LED Display. GOB is a protective epoxy resin coating that enhances the durability and reliability of LED modules, especially for fine-pitch displays like P1.53.
| Pixel Pitch | 1.53mm-GOB |
| Pixel Configuration | 1R1G1B |
| LED Type | SMD1415 |
| Module Size | 320*160mm(w*h) |
| Module Resolution | 208*104mm(w*h) |
| Module Weight | 498g |
| Pixel Density | 422,500dots/m² |
| Brightness | ≥600cd/m² |
| Max. Power Consumption | 31w/piece |
| Avg. Power Consumption | 16w/piece |
| Refresh Rate | ≥3840Hz |
| Min. Viewing Distance | ≥1.53 meters |
