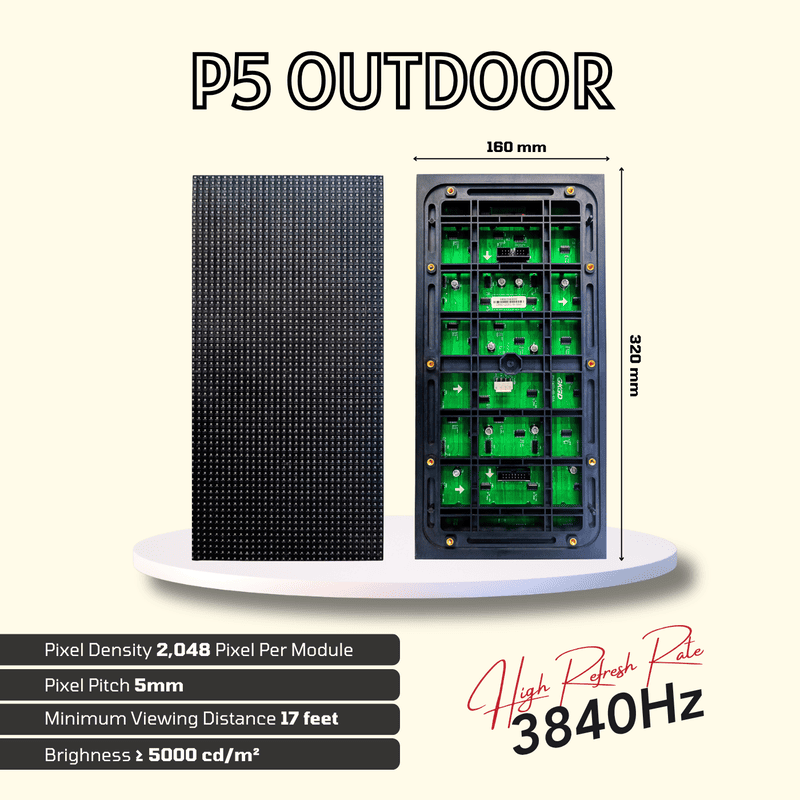

P5 Outdoor SMD Module
P5 Outdoor SMD Module
P5 Outdoor SMD Module is an LED display module with a 5mm pixel pitch. It is designed for outdoor use, offering high brightness, waterproof protection (IP65), and clear visibility in sunlight. It is commonly used for billboards, shop signage, and digital advertising screens.
| Pixel Pitch | 5mm |
| Pixel Configuration | 1R1G1B |
| LED Type | SMD1921 |
| Module Size | 320*160mm(w*h) |
| Module Resolution | 64*32 mm(w*h) |
| Module Weight | 435g |
| Pixel Density | 40,000dots/m² |
| Brightness | ≥5000cd/m² |
| Max. Power Consumption | 38w/piece |
| Avg. Power Consumption | 19w/piece |
| Refresh Rate | ≥3840Hz |
| Min. Viewing Distance | ≥5 meters |
